SPECIFICATION

• High-Speed Connectivity: Offers speeds of up to 2 Gbps in full-duplex mode, providing a significant boost to network performance.
• PCI Interface: Designed for easy installation in PCs with available PCI expansion slots.
• Auto-Negotiation: Automatically detects the optimal speed and duplex mode for your network connection.
• Advanced Features: Supports 802.1p Priority Queues, 802.1Q VLAN Tagging, and Jumbo Frames for enhanced network management and performance.
• Power Management: Supports ACPI 2.0 WOL (Wake-on-LAN) for remote system wake-up.
• Operating System Compatibility: Supports a wide range of operating systems, including Windows, Linux, and Mac OS X.

Technical Specifications:

• Standards: IEEE 802.3, 802.3u, 802.3ab
• Interface: PCI
• Data Transfer Rate:
  •  Gigabit Ethernet: Up to 2000 Mbps full duplex
  • Fast Ethernet: 100 Mbps half duplex, 200 Mbps full duplex
  • Ethernet: 10 Mbps half duplex, 20 Mbps full duplex
• Supported Functions:
  •  7 KB Jumbo Frames
  •  IEEE 802.1p Priority Queues
  •  IEEE 802.1Q VLAN Tagging
  •  Wake on LAN
  •  Diagnostics Utility
• Dimensions: 121 x 114.7 x 19 mm (4.76 x 4.52 x 0.75 inches)
• Weight: 46.6 grams (1.64 ounces)
• Power Consumption: 2.236 W maximum
• Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Storage Temperature: -25 to 55 °C (-13 to 131 °F)
• Humidity:
  • Operating: 5% to 90% non-condensing
  • Storage: 5% to 90% non-condensing
•  Certifications: CE, FCC

Additional Notes:

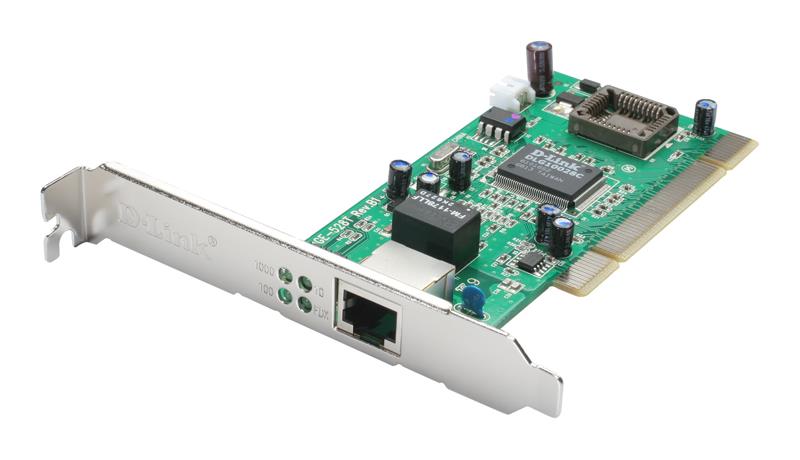

• The DGE-528T is a 32-bit card with a 33/66 MHz clock speed.
• It supports 802.3x Flow Control for improved data reliability.
• It features a built-in 72K FIFO buffer to reduce CPU overhead.
• It is compatible with both 3.3V and 5V PCI slots.
