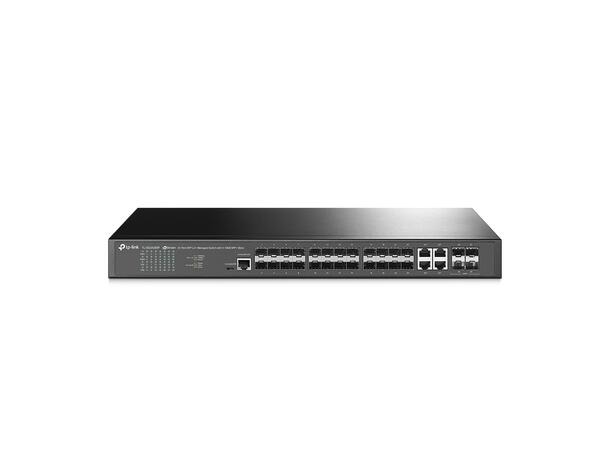

TP-Link TL SG3428XF

TP-Link TL SG3428XF

Price:

Rs.158,900.00

Weight:

0.00 LBS

Shipping:

Free Shipping

Product Description

specification

Brand	TP-Link
Number of Ports	24
Included Components	Rackmount Kit, Power Cord
Compatible Devices	Desktop
Switch Type	L2+ Managed

TP-Link Switch TL-SG3428XF 24-Port

Managed

10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
Gigabit Fiber Speeds: 20× gigabit SFP ports and 4× gigabit SFP/RJ45 Combo ports s offer high-speed and reliable connections to other switches and devices.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

HARDWARE FEATURES
Interface	• 20× Gigabit SFP Ports
	• 4× Gigabit SFP/RJ45 Combo Ports
	• 4× 10G SFP+ Slots
	• 1× RJ45 Console Port
	• 1× Micro-USB Console Port
Fan Quantity	1 Fan
Power Supply	Dual Reduant Power Supplies
	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	35.7 W (110 V/60 Hz)
Max Heat Dissipation	121.81 BTU/hr (110 V/60 Hz)
SOFTWARE FEATURES
Quality of Service	• 8 priority queues
	• 802.1p CoS/DSCP priority
	• Queue scheduling
	- SP (Strict Priority)
	- WRR (Weighted Round Robin)
	- SP+WRR
	• Bandwidth Control
	- Port/Flow based Rating Limiting
	• Smoother Performance
	• Action for Flows
	- Mirror (to supported interface)
	- Redirect (to supported interface)
	- Rate Limit
	- QoS Remark
L3 Features	• 16 IPv4/IPv6 Interfaces
	• Static Routing
	- 48 static routes
	• Static ARP
	- 128 Static Entries
	• Proxy ARP
	• Gratuitous ARP
	• DHCP Server
	• DHCP Relay
	- DHCP Interface Relay
	- DHCP VLAN Relay
	• DHCP L2 Relay
L2 and L2+ Features	• Link Aggregation
	- static link aggregation
	- 802.3ad LACP
	- Up to 8 aggregation groups, containing 8 ports per group
	• Spanning Tree Protocol
	- 802.1d STP
	- 802.1w RSTP
	- 802.1s MSTP
	- STP Security: TC Protect, BPDU Filter, Root Protect
	• Loopback Detection
	- Port based
	- VLAN based
	• Flow Control
	- 802.3x Flow Control
	- HOL Blocking Prevention
	• Mirroring
	- Port Mirroring
	- CPU Mirroring
	- One-to-One
	- Many-to-One
	- Tx/Rx/Both
L2 Multicast	• IGMP Snooping
	- IGMP v1/v2/v3 Snooping
	- Fast Leave
	- IGMP Snooping Querier
	- IGMP Authentication
	• IGMP Authentication
	• MLD Snooping
	- MLD v1/v2 Snooping
	- Fast Leave
	- MLD Snooping Querier
	- Static Group Config
	- Limited IP Multicast
	• MVR
	• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	• Automatic Device Discovery
	• Batch Configuration
	• Batch Firmware Upgrading
	• Intelligent Network Monitoring
	• Abnormal Event Warnings
	• Unified Configuration
	• Reboot Schedule
VLAN	• VLAN Group
	- Max 4K VLAN Groups
	• 802.1Q Tagged VLAN
	• MAC VLAN: 30 Entries
	• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
	• Private VLAN
	• GVRP
	• VLAN VPN (QinQ)
	- Port-Based QinQ
	- Selective QinQ
	• Voice VLAN
Access Control List	• Time-based ACL
	• MAC ACL
	- Source MAC
	- Destination MAC
	- VLAN ID
	- User Priority
	- Ether Type
	• IP ACL
	-Source IP
	- Destination IP
	- Fragment
	- IP Protocol
	- TCP Flag
	- TCP/UDP Port
	- DSCP/IP TOS
	- User Priority
	• Combined ACL
	• Packet Content ACL
	• IPv6 ACL
	• Policy
	- Mirroring
	- Redirect
	- Rate Limit
	- QoS Remark
	• ACL apply to Port/VLAN
Security	• IP-MAC-Port Binding
	- 512 Entries
	- DHCP Snooping
	- ARP Inspection
	- IPv4 Source Guard: 100 Entries
	• IPv6-MAC-Port Binding
	- 512 Entries
	- DHCPv6 Snooping
	- ND Detection
	- IPv6 Source Guard: 100 Entries
	• DoS Defend
	• Static/Dynamic Port Security
	- Up to 64 MAC addresses per port
	• Broadcast/Multicast/Unicast Storm Control
	- kbps/ratio control mode
	• 802.1X
	- Port base authentication
	- Mac base authentication
	- VLAN Assignment
	- MAB
	- Guest VLAN
	- Support Radius authentication andaccountability
	• AAA (including TACACS+)
	• Port Isolation
	• Secure web management through HTTPS with SSLv3/TLS 1.2
	• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
	• IP/Port/MAC based access control
IPv6	• IPv6 Dual IPv4/IPv6
	• Multicast Listener Discovery (MLD) Snooping
	• IPv6 ACL
	• IPv6 Interface
	• Static IPv6 Routing
	• IPv6 neighbor discovery (ND)
	• Path maximum transmission unit (MTU) discovery
	• Internet Control Message Protocol (ICMP) version 6
	• TCPv6/UDPv6
	• IPv6 applications
	- DHCPv6 Client
	- Ping6
	- Tracert6
	- Telnet (v6)
	- IPv6 SNMP
	- IPv6 SSH
	- IPv6 SSL
	- Http/Https
	- IPv6 TFTP
MIBs	• MIB II (RFC1213)
	• Interface MIB (RFC2233)
	• Ethernet Interface MIB (RFC1643)
	• Bridge MIB (RFC1493)
	• P/Q-Bridge MIB (RFC2674)
	• RMON MIB (RFC2819)
	• RMON2 MIB (RFC2021)
	• Radius Accounting Client MIB (RFC2620)
	• Radius Authentication Client MIB (RFC2618)
	• Remote Ping, Traceroute MIB (RFC2925)
	• Support TP-Link private MIB
MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller
	• Omada Hardware Controller (OC300)
	• Omada Hardware Controller (OC200)
	• Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI
	• Command Line Interface (CLI) through the console port, telnet
	• SNMP v1/v2c/v3
	- Trap/Inform
	- RMON (1,2,3,9 groups)
	• SDM Template
	• DHCP/BOOTP Client
	• 802.1ab LLDP/LLDP-MED
	• DHCP AutoInstall
	• Dual Image, Dual Configuration
	• CPU Monitoring
	• Cable Diagnostics
	• EEE
	• Password Recovery
	• SNTP
	• System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SG3428XF Switch
	• Power Cord
	• Quick Installation Guide
	• Rackmount Kit
	• Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–45 degrees celsius
	• Storage Temperature: -40–70 degrees celsius
	• Operating Humidity: 10–90% RH non-condensing
	• Storage Humidity: 5–90% RH non-condensing
