| Specification |
|
|
|
|

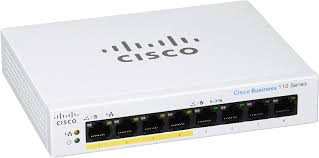

| CBS110-8PP-D |
|
|
|
|
| Specifications |
Description |
|
|
|
| Capacity in millions of packets per second (mpps) (64-byte packets) |
11.9 mpps |
|
|
|
| Switching capacity in gigabits per second (Gbps) |
16 Gbps |
|
|
|
| Total system ports |
8 Gigabit Ethernet |
|
|
|
| RJ-45 ports |
8 Gigabit Ethernet |
|
|
|
| Power dedicated to PoE |
32W |
|
|
|
| Number of ports that support |
4 |
|
|
|
| PoE |
|
|
|
| Packet Buffer |
2 Mbit |
|
|
|
| Unit dimensions (W x D x H) |
160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in) |
|
|
|
| General |
|
|
|
|
| Head-of-line (HOL) blocking |
HOL blocking prevention |
|
|
|
| MAC table |
2K addresses for CBS110-5T-D 8K addresses for all other models |
| Jumbo frame |
9216 bytes |
| Quality of Service (QoS) |
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection |
Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics |
Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, |
| IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over |
| Ethernet |
| Hardware |
|
| LEDs |
* * |
| Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE. |
| * |
| if present |
| Cabling type |
Category 5e or better |
| Mounting options |
Desktop, wall-mount or rack mount |
| Physical security lock |
Kensington lock slot |
| Flash |
16 MB for CBS110-16T, CBS110-16PP |
| 8 MB for CBS110-24T, CBS110-24PP |
| CPU |
400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP |
| CPU memory |
128 MB for CBS110-16T, CBS110-16PP |
| 64 MB for CBS110-24T, CBS110-24PP |
| Supported SFP modules |
SKU |
Media |
Speed |
Maximum distance |
| MGBSX1 |
Multimode fiber |
1000 Mbps |
500 m |
| MGBLX1 |
Single-mode fiber |
1000 Mbps |
10 km |
| MGBLH1 |
Single-mode fiber |
1000 Mbps |
40 km |
| MGBT1 |
UTP cat 5e |
1000 Mbps |
100 m |
| Environmental |
| Power |
CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A |
| CBS110-8PP-D: DC 48V, 1.25A |
| CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal |
| Green (power efficiency) |
Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications |
* |
| UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
| * |
| select models |
| Operating temperature |
32° to 104°F (0° to 40°C) |
| Storage temperature |
–4° to 158°F (–20° to 70°C) |
| Operating humidity |
10% to 90%, relative, noncondensing |
| Storage humidity |
5% to 90%, relative, noncondensing |
| Warranty |
Limited lifetime |
| Package contents |
|
|
|
|
| ● Cisco Business 110 Series switch |
|
|
|
|
| ● Power cord or adapter |
|
|
|
|
| ● Quick start guide |
|
|
|
|
| ● Mounting kit |
|
|
|
|
| Minimum requirements |
|
|
|
|
|
● Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
● Cat5e or better Ethernet cable
|
|
|
|
|
| ● Network interface card for each computer |
|
|
|
|
