SPECIFICATION

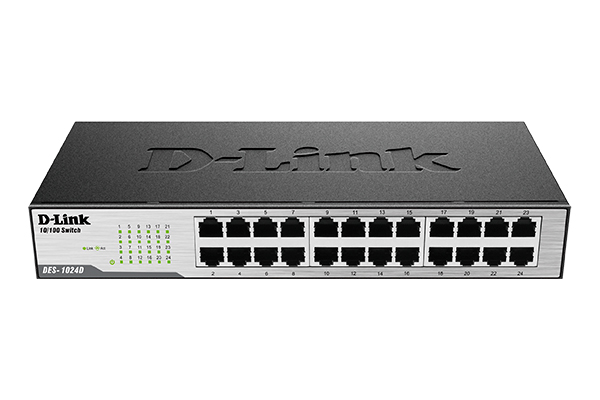

• 24 High-Speed Ports: Provides twenty-four 10/100 Mbps Fast Ethernet ports for connecting multiple devices to your network.
• Auto-Negotiation: Automatically detects the optimal speed and duplex mode for each connected device.
• Auto MDI/MDIX: Eliminates the need for crossover cables.
• Plug-and-Play Installation: Easy setup with no configuration required.
• Metal Chassis: Provides enhanced durability and heat dissipation.
• Energy Efficient: Incorporates energy-saving features to reduce power consumption.

Technical Specifications:

• Ports: 24 x 10/100 Mbps Auto-Negotiation RJ-45 ports
• Standards: IEEE 802.3, IEEE 802.3u
• Data Transfer Rates: 10 Mbps, 100 Mbps (Auto-Negotiation)
• Media: UTP Cat. 3, 4, 5, 5e
• Flow Control: Backpressure
• Dimensions: 280 x 125 x 44 mm (Approx.)
• Weight: 1.66 kg (Approx.)
• Power Supply: External Power Adapter (Included)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10% to 90% (Non-condensing)
• Certifications: CE, FCC, RoHS

Additional Information:

• Switching Capacity: 4.8 Gbps
• Packet Forwarding Rate: 3.576 Mpps
• MAC Address Table Size: 8,000 entries
• Jumbo Frame Support: Up to 2048 bytes
• Power Consumption: Typically less than 5.5W
