SPECIFICATION

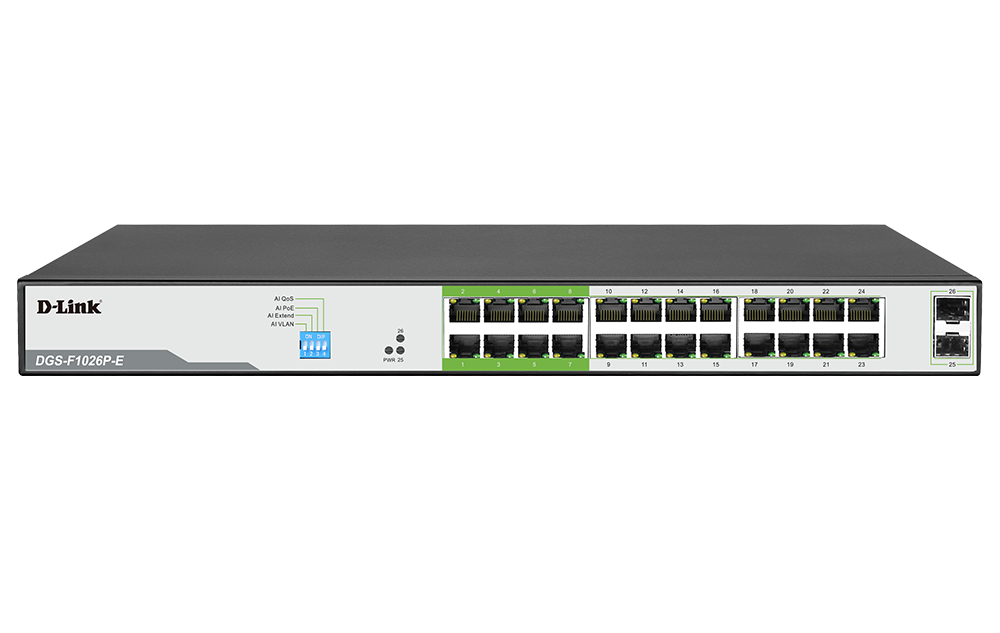

• Model: DGS-F1026P
• Type: 26-Port Gigabit PoE Switch
• Form Factor: Rackmountable (1U)

Ports

• Total Ports: 26
  • PoE+ Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports (8 Long Reach, 250m)
  • Uplink Ports: 2 x 10/100/1000 Mbps Combo SFP ports for fiber connectivity

Power Specifications

• Power Budget: Up to 250W total PoE power budget
• PoE Standards: Supports IEEE 802.3af and IEEE 802.3at
• Power Supply: Internal power supply
• Input Voltage: 100-240V AC, 50/60 Hz

Performance

• Switching Capacity: 52 Gbps
• MAC Address Table: 8K entries
• Packet Buffer Memory: 2 MB
• Jumbo Frame Support: Up to 9 KB

Features

• Management: Web-based management interface
• QoS: Supports IEEE 802.1p QoS for traffic prioritization
• VLAN: Supports up to 64 VLANs (IEEE 802.1Q)
• Link Aggregation: Supports up to 8 groups of LAG
• IGMP Snooping: Supports multicast traffic management

Security Features

• Access Control Lists (ACLs): For traffic filtering
• Port Security: Prevents unauthorized access
• Storm Control: Prevents broadcast, multicast, and unknown unicast storms

Environmental Specifications

• Operating Temperature: 0 to 50°C
• Storage Temperature: -40 to 70°C
• Humidity: 0% to 95% (non-condensing)

Physical Specifications

• Dimensions: 440 mm x 200 mm x 44 mm
• Weight: 3.5 kg

Certifications

• Certifications: CE, FCC, RoHS

Additional Features

• Green Technology: Energy-efficient design with power-saving features
• Fanless Design: Silent operation
• LED Indicators: For port status, power, and activity
