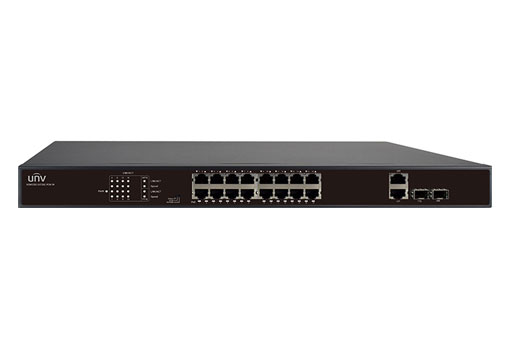

Ethernet Switch

Image 1
  • Image 1
Price:
Rs.58,900.00
SKU:
NSW2010-24T2GC-PoE-IN
Weight:
0.00 LBS
Shipping:
Free Shipping
Quantity:

Product Description

Specification
Hardware  Specification
Ports Type 24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity 8.8Gbps
Packet Buffer 4M bit
Forwarding performance 6.55Mpps
MAC 16K
Max. PoE Power
Max capacity: 370W,
Max capacity for single port: 30W
Power supply AC: 100-240 V, 50/60 Hz
Max.Power 390W
Weight <4.2 kg
Cooling Fans 2
Mean Time Between Failure (MTBF) >50000 hours
Dimensions (W×D×H) 440mm x 207mm x 45mm(17.3"×8.1"×1.8")
Storage Temperature -40 °C ~ 70 °C
Operating humidity 10%～90% (noncondensing)
Storage humidity 5%～90% (noncondensing)
Operating temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Indicator POWER Steady on: AC input is normal,
POWER Off: No AC input,
PoE Off: No PoE power supply,
PoE Steady on: PoE power supply is normal,
LINK/ACT Off: No link,
LINK/ACT Steady on: Linked,
LINK/ACT Flashing: Transmitting data,
Speed Off: Linked at 10/100Mbps,
Speed On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other.,
EXTEND(Surveillance mode): Transmission distance up to 250 meters., VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
