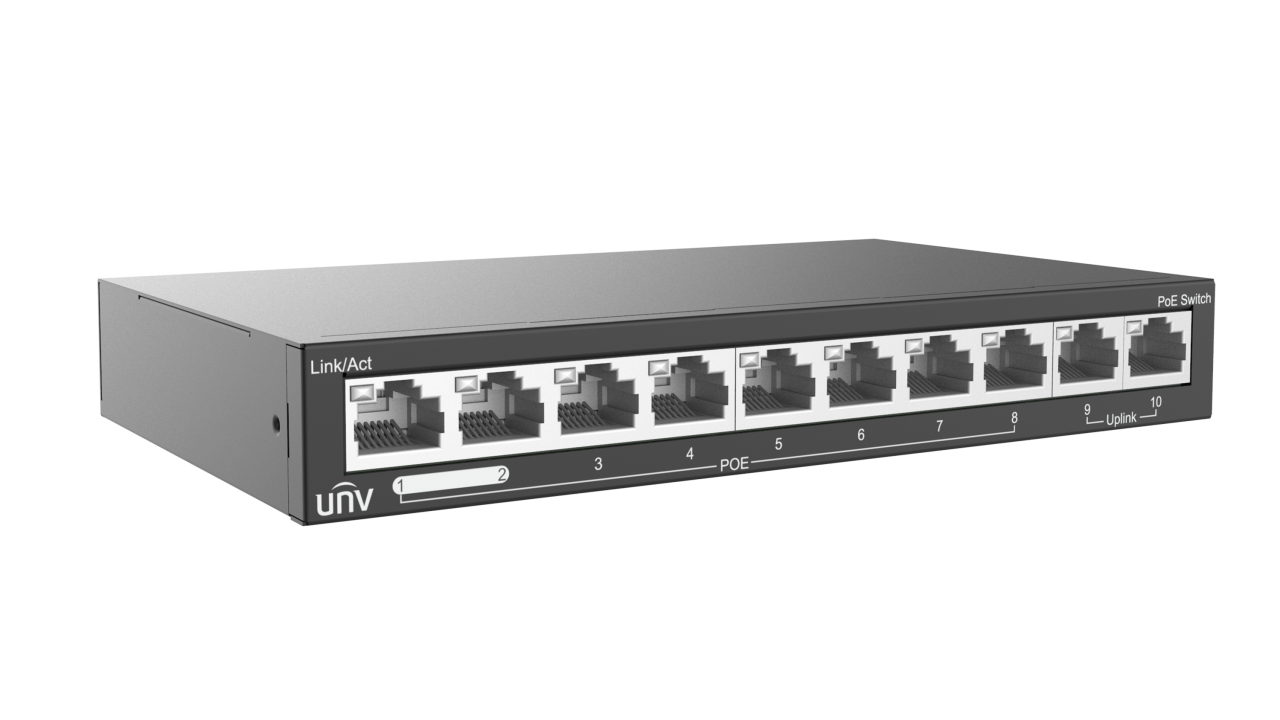

Unmanaged Ethernet Switch(PoE)

Image 1
  • Image 1
Price:
Rs.13,200.00
SKU:
NSW2020-10T-POE-IN
Weight:
0.00 LBS
Shipping:
Free Shipping
Quantity:

Product Description

Specification
Hardware Specification
Ports Type 10×100Mbps network ports (RJ45), including 8 PoE ports
Prior Ports 1~2
Indicator POWER Steady on: AC input is normal, POWER Off: No AC input,
No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data
PoE support POE
Switching capacity 2Gbps
Packet Buffer 448K bit
Max. PoE Power
Max capacity: 88W,
Max capacity for single port: 30W
Storage Temperature -40 °C ~ 70 °C
Working Mode Default(Normal mode) : All ports can communicate with each other.,
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
Power Supply DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz)
Max.Power 94W
Operating humidity 10%～90% (noncondensing)
MAC 1K
Forwarding performance 1.49Mpps
Cooling Fans 0
Weight 0.29KG
Storage humidity 5%～90% (noncondensing)
Dimensions (W×D×H) 171*103*25mm
Operating temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
