SPECIFICATIONS

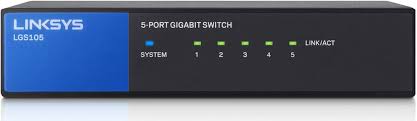

The Linksys LGS105-ME-RTL is a 5-Port Business Desktop Gigabit Switch designed to enhance the performance of your local wired network. Below are its key specifications and features:

Key Features:

• High-Speed Wired Connections: Provides wired connection speeds up to 1,000 Mbps, facilitating rapid data transfers and efficient streaming of high-bandwidth files.
• Five Gigabit Ethernet Ports: Equipped with five auto-sensing Gigabit Ethernet ports, allowing seamless integration of multiple devices into your network.
• Plug-and-Play Installation: Offers easy setup with plug-and-play functionality, eliminating the need for complex configuration.
• Quality of Service (QoS): Incorporates QoS traffic prioritization to ensure optimal performance for critical network applications.
• Energy Efficiency: Meets the IEEE 802.3az Energy Efficient Ethernet standard, featuring power-saving functionalities such as auto power-down for unused ports and smart power adjustment for short cable runs.

Technical Specifications:

• Standards: Complies with IEEE 802.3, 802.3u, 802.3x, 802.3ab, and 802.3az standards.
• MAC Address Table Size: Supports up to 8,000 MAC address entries.
• Bandwidth: Offers a non-blocking bandwidth of 10 Gbps.
• Performance: Delivers full line rate and forwarding rate with a 64-byte frame at:
  • 1.488 Mpps for 1000 Mbps ports
  • 0.1488 Mpps for 100 Mbps ports
  • 0.01488 Mpps for 10 Mbps ports
• Power Supply: Utilizes an external power adapter with a 5V DC, 1.0A output.
• Power Consumption: Consumes 0.73W in idle mode and up to 2.22W during maximum traffic.
• Form Factor: Designed for desktop use with dimensions of 120 x 88 x 26 mm and a weight of 252 grams.

The Linksys LGS105-ME-RTL is an ideal solution for small businesses or home offices seeking to expand their wired network with reliable, high-speed connections, energy-efficient operation, and straightforward installation.
