SPECICICATIONS

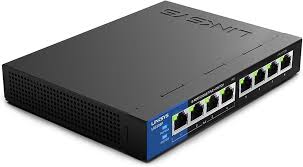

The Linksys LGS108P-UK is an 8-port unmanaged Gigabit Ethernet switch designed to enhance wired network performance for small to medium-sized businesses. It offers Power over Ethernet Plus (PoE+) support, allowing for the efficient deployment of network devices such as wireless access points, IP telephony, or video surveillance solutions without the need for separate power supplies.

Key Features:

• High-Speed Connectivity: Provides wired connection speeds up to 1,000 Mbps, facilitating rapid data transfers and efficient streaming of high-bandwidth files.

• PoE+ Support: Equipped with 8 Gigabit Ethernet auto-sensing ports, with ports 1–4 supporting PoE+ and a dedicated PoE power budget of 50 W

• Plug-and-Play Installation: Offers easy setup with plug-and-play functionality, eliminating the need for complex configuration.

• Quality of Service (QoS): Incorporates QoS traffic prioritization to ensure optimal performance for critical network applications.

• Energy Efficiency: Meets the IEEE 802.3az Energy Efficient Ethernet standard, featuring power-saving functionalities such as auto power-down for unused ports and smart power adjustment for short cable runs.

Technical Specifications:

• Standards Compliance: Adheres to IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at standards.

• MAC Address Table Size: Supports up to 8,000 MAC address entries.

• Bandwidth: Offers a non-blocking bandwidth of 16 Gbps.

• Performance: Delivers full line rate and forwarding rate with a 64-byte frame at:

  • 1.488 Mpps for 1,000 Mbps ports

  • 0.1488 Mpps for 100 Mbps ports

  • 0.01488 Mpps for 10 Mbps ports

• Power Supply: Utilizes an external power adapter with a 54 VDC, 1.2 A output.

• Power Consumption: Consumes 1.71 W in idle mode and up to 5.08 W during maximum traffic.

• Form Factor: Designed for desktop use with dimensions of 210 x 104 x 25 mm and a weight of approximately 0.50 kg.

The Linksys LGS108P-UK is an ideal solution for businesses seeking to expand their wired network with reliable, high-speed connections, PoE+ support, energy-efficient operation, and straightforward installation.
