SPECIFICATIONS

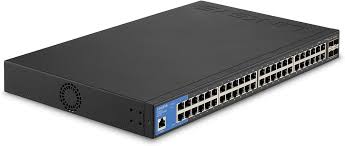

The Linksys LGS352C-EU is a 48-port managed Gigabit Ethernet switch designed to deliver high-speed connectivity and advanced network management features suitable for small to medium-sized businesses. It includes four additional 10 Gbps SFP+ uplink ports, enhancing network flexibility and scalability.

Key Features:

• High-Speed Connectivity: Equipped with 48 Gigabit Ethernet ports, each supporting speeds up to 1,000 Mbps, ensuring rapid data transfers and efficient handling of high-bandwidth applications.

• SFP+ Uplink Ports: Includes four 10 Gbps SFP+ uplink ports, allowing for seamless integration with fiber-optic networks and extended distance connections.

• Advanced Management: Supports features such as VLAN (Virtual Local Area Network) for network segmentation, Quality of Service (QoS) for traffic prioritization, and comprehensive network monitoring tools, enabling optimized performance and enhanced security.

• Security Features: Incorporates advanced security measures, including 802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security with dynamic lock and locked MAC address support, and DoS attack prevention, safeguarding the network from unauthorized access and potential threats.

• Energy Efficiency: Complies with IEEE 802.3az Energy Efficient Ethernet standards, reducing power consumption during periods of low data activity.

Technical Specifications:

• Switching Capacity: Provides a non-blocking switching capacity of 176 Gbps, ensuring smooth data flow across all ports.

• Forwarding Rate: Capable of forwarding packets at a rate of 130.95 million packets per second (Mpps).

• VLAN Support: Supports up to 256 active VLANs within a range of 4,096, facilitating effective network segmentation and management.

• Port Mirroring: Allows traffic on multiple ports (up to 3) to be mirrored to another port for analysis with a network analyzer or RMON probe.

• Jumbo Frame Support: Supports jumbo frames up to 12,000 bytes, enhancing performance for large data transfers.

• Power Consumption: Consumes approximately 43.87 watts of power, promoting energy-efficient operation.

• Dimensions and Weight: Measures 440 x 260 x 44 mm and weighs approximately 3.468 kg.

The Linksys LGS352C-EU is an ideal solution for businesses seeking a reliable and secure managed switch with high-speed connectivity, advanced management capabilities, and energy-efficient performance.
