OET

Price:

Rs.160,500.00

SKU:

OET-573B-HMQR-WR

Weight:

0.00 LBS

Shipping:

Free Shipping

Product Description

More information

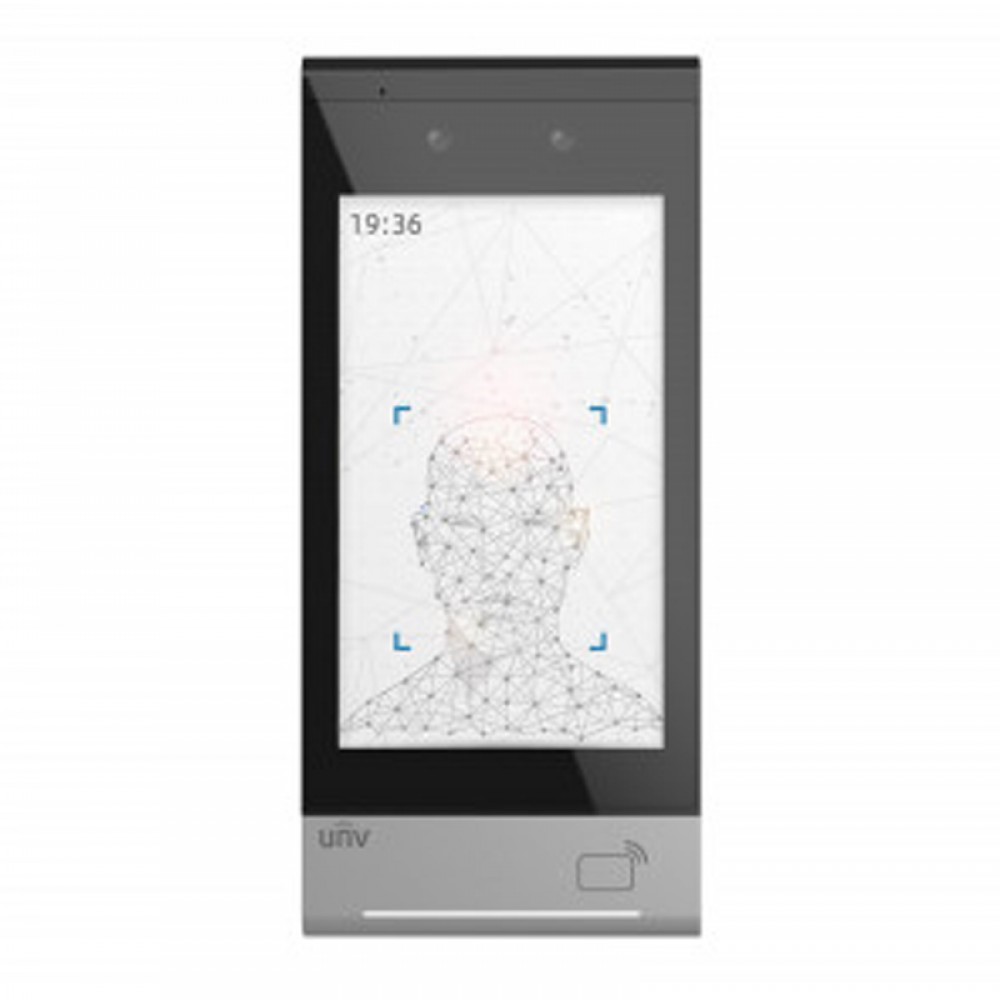

Industrial-grade design for a sophisticated and elegant appearance.
Stable and reliable operation ensured by the embedded Linux OS.
Inclusion of a built-in QR code module, offering a feature-rich and highly-integrated solution.
UNV deep learning algorithm model guarantees face recognition accuracy rates exceeding 99% with a false rate less than 1% and rapid recognition speeds (up to 0.2s).
Local offline recognition is facilitated by the built-in deep learning chip, supporting a substantial face (1:N) capacity of up to 50,000.
Equipped with a 2MP WDR camera featuring intelligent metering, ensuring high-quality image capture in diverse and challenging lighting conditions.
Incorporation of RGB+IR dual-camera liveness detection function effectively prevents image or video spoofing.
Offline speech synthesis engine supports the broadcasting of a person’s name after successful authentication, along with customizable voice prompts.
Advertising mode support allows users to customize the timing for switching between pictures or videos and provides playback time statistics.
Comprehensive support for pandemic prevention and control with features such as temperature measurement (requires an external module) and mask detection.
Multiple authentication methods supported, including face, card, password, QR code, etc., for flexible access control.
Device management capabilities available in both the local and web interfaces, allowing tasks such as personnel entry tracking, parameter configuration, and system maintenance.

Description

Parameter	Description
Operating system	Linux
Face recognition accuracy rate	>99%
Face recognition time	200ms
Face capacity	50,000
Card capacity	50,000
Storage	16GB
Event capacity	200,000 events (without images); 50,000 events (with images)
Common authentication mode	Face allowlist (1:N), Number allowlist (1:N)
Door opening mode	Face, password, QR code, card, or any combination of them
Communication mode	1×100Mbps Ethernet interface
Card support	Mifare card, USIM NFC card
Personnel management	Supports adding, updating, and deleting face libraries and their members
Record management	Supports saving records locally and uploading records to a third-party platform in real time
Interface	Network port×1, Wiegand input×1, Wiegand output×1, RS485×1, alarm input×2, alarm output×1, door lock interface×1, door sensor interface×1, door button×1
Network	Two network modes: 1. Connects to Wi-Fi 2. Provides a hotspot for other devices
Power	DC 12V±25% input
Touch screen	Size: 7-inch, Resolution: 600×1024
Camera	2MP RGB+IR dual-camera
Illumination	IR
Dimensions (L×W×H)	260.2mm × 110mm × 23.5mm
Mount method	Standard metal wall mount, supports bare installation and 86-box installation
Operating environment	-20°C to 60°C; <95%, non-condensing
Protection Level	IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.)
Application scenario	Indoor/outdoor
