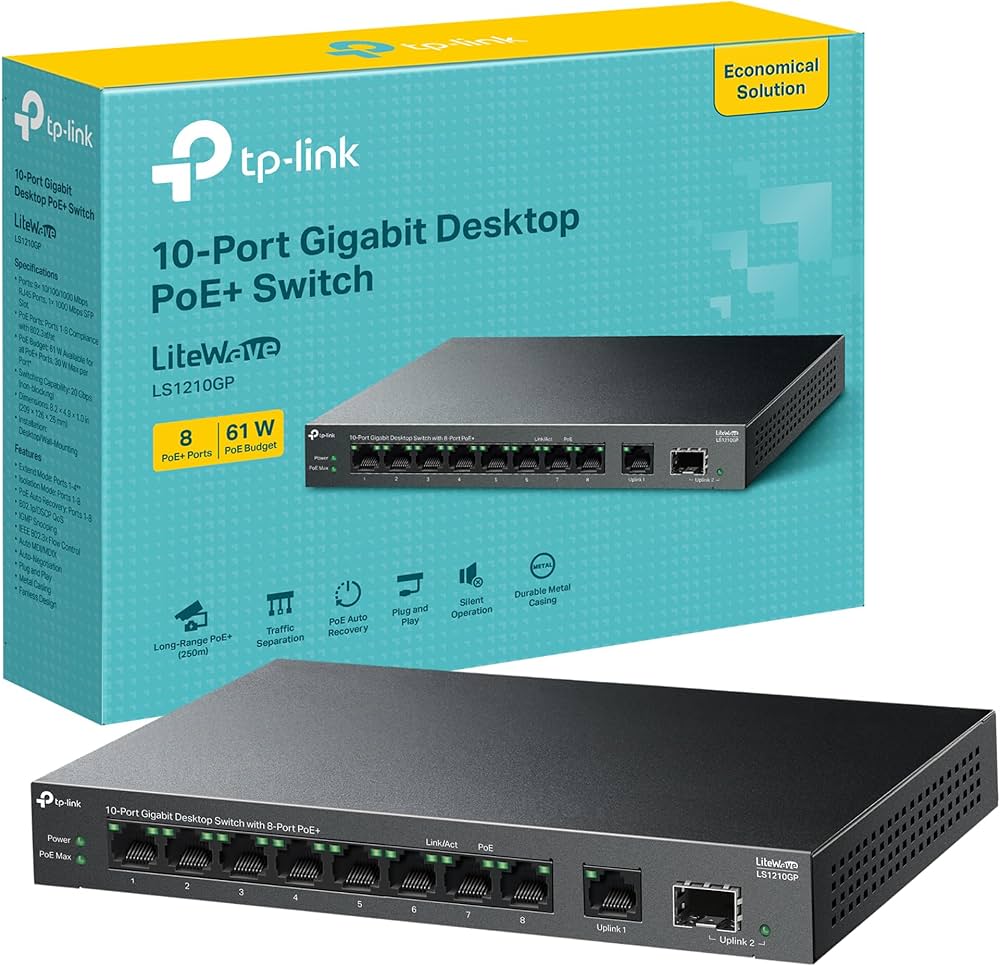

TP-Link 10-Port Gigabit Desktop Switch with 8-Port - LS1210GP

Image 1
  • Image 1
  • Image 2
  • Image 3
Price:
Rs.14,300.00
SKU:
N/A
Brand:
Tp Link
Weight:
0.00 LBS
Availability:
Yes
Shipping:
Calculated at checkout
Quantity:

Product Description

Discover the TP-Link Wi-Fi Router Switches at itshop.pk—the best router switch in Pakistan. Experience fast, reliable connectivity and superior performance, perfect for homes and offices. Elevate your internet experience today!



TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+, 61 W PoE Budget, 30 W PoE output, Up to 250m PoE Transmission. Traffic Separation, Plug and Play, Fanless, Metal Case (LS1210GP)

10-Port Gigabit Desktop Switch with 8-Port PoE+

  • Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
  • 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
  • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
  • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
  • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
  • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.



HARDWARE FEATURES
Interface • 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)
• 1× Gigabit SFP Port
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Installation • Desktop
• Wall Mounting
Physical Security Lock Yes
Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Power Budget: 61W
Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption • 7.3 W (220/50Hz. no PD connected)
• 76.96 W (220/50Hz. with 61 W PD connected)
Max Heat Dissipation • 24.82 BTU/h (no PD connected)
• 261.66 BTU/h (with 61 W PD connected)

PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 4K
Jumbo Frame 16 KB

SOFTWARE FEATURES
Advanced Features • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Compatible With IEEE 802.3af/at Compliant PDs
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology
Transmission Method Store-And-Forward

OTHERS
Certification CE, FCC, RoHS
Package Contents • LS1210GP
• Power Adapter
• Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
