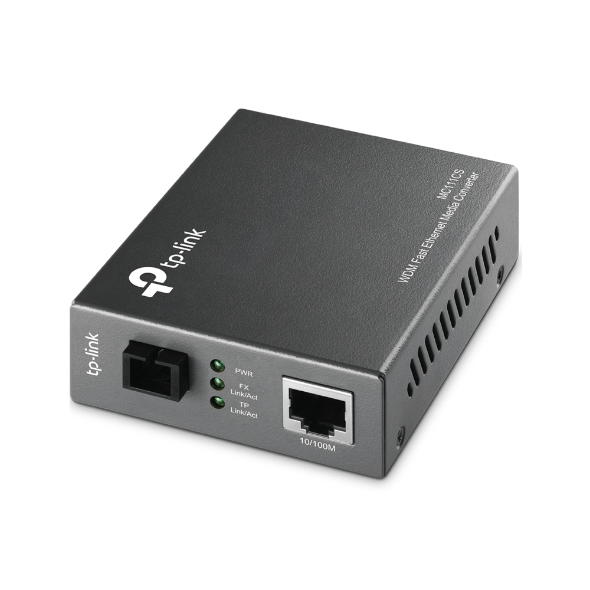

TP-Link WDM Media Converter | MC111CS 10/100 Mbps | Single Fiber Data Transmission of Networking Device

Price:

Rs.7,500.00

SKU:

539774396_PK-2527031238

Brand:

Tp Link

Weight:

0.00 LBS

Availability:

Yes

Shipping:

Calculated at checkout

Product Description

The TP-Link Media Converter by ITshop.pk seamlessly converts Ethernet to fiber, extending network distance and improving performance, making it an essential tool for reliable connectivity in Pakistan.

TP-Link WDM Media Converter | MC111CS 10/100 Mbps | Single Fiber Data Transmission of Networking Device

10/100Mbps WDM Media Converter

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km

MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3i, IEEE 802.3u
Basic Function	Adopts WDM technology Half/Full-Duplex transfer mode for FX port Extends fiber distance up to 20km
Ports	1 100M SC/UPC port 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length	1550nm Tx/1310nm Rx
WDM TX	1550nm
WDM RX	1310nm
Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX	Single-mode Fiber
LED Indicators	PWR, Link/Act
Dimensions (WDH)	3.72.91.1 in. (94.573.027.0 mm)
Power Supply	External Power Adapter
Max Power Consumption	1.23W
Safety & Emission	FCC, CE, RoHS
Package Contents	• Media Converter MC111CS • Power Adapter • Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
