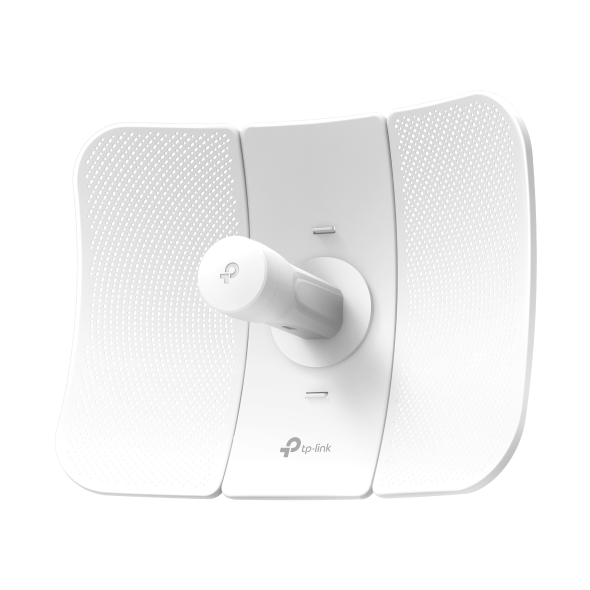

TP-Link Wi-Fi Outdoor Range Extender CPE610 17km

Image 1
  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
Rs.14,900.00
SKU:
417987567_PK-1981419662
Brand:
Tp Link
Weight:
0.00 LBS
Availability:
Yes
Shipping:
Calculated at checkout
Quantity:

Product Description

Discover top-quality CPE Outdoor Access Points at itshop.pk, your go-to source in Pakistan for reliable connectivity solutions. Enhance your outdoor network effortlessly today!



TP-Link Wi-Fi Outdoor Range Extender CPE610 17km 5GHz 300Mbps 23dBi Outdoor CPE



5GHz 300Mbps 23dBi Outdoor CPE

  • Up to 300Mbps on 5GHz wireless data rates
  • 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation



HARDWARE FEATURES
Processor Qualcomm 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM,8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 7.41 W
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23dBi
Antenna Beamwidth 9°(Azimuth), 7°(Elevation)
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmit Power Max. 25dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8×43.9×29.7 mm
Interfaces 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification CE, FCC, IC, RoHS, IP65
Package Contents Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
