Interface

3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot

Button

WPS/Reset Button, Wireless On/Off Button, Power On/Off Button

Antenna

3 Internal Wi-Fi Antennas,
2 Detachable External 4G LTE Antennas

External Power Supply

12V/1A

Dimensions ( W x D x H )

7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)

Wireless Standards

IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300Mbps at 2.4GHz, 433Mbps at 5GHz

Reception Sensitivity

5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm

2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm

Transmit Power

CE: <20dBm(2.4GHz), <23dBm(5GHz)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B40 (2600/2300MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)

Quality of Service

Traf­c Control(IP QoS)

Operating Modes

3G/4G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

Access Control, Local Management, Remote Management

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec

Access Control

Parental Control, Local Management Control, Host List,
Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding

Protocols

Supports IPv4 and IPv6

Guest Network

2.4GHz guest network x 1, 5GHz guest network x 1

IPSec VPN

Supports up to 10 IPSec VPN tunnels

Certification

CE, FCC, RoHS

Package Contents

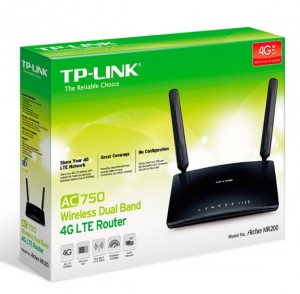

AC750 Wireless Dual Band 4G LTE Router, Archer MR200
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Micro to Standard SIM Card Adapter
Nano to Standard SIM Card Adapter

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers
SIM Card

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
