SPECIFICATION

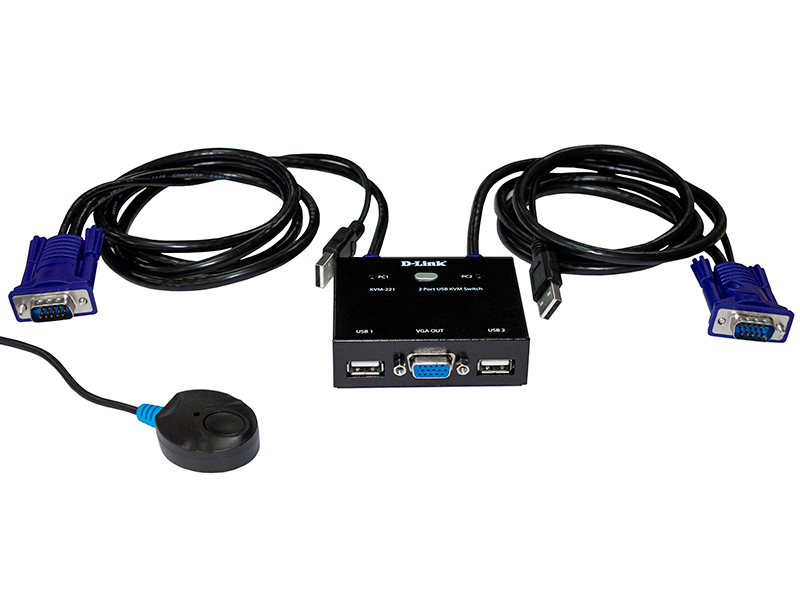

• Model: KVM-221
• Type: 2-Port KVM Switch
• Ports:
  • 2 x VGA ports
  • 2 x USB ports (for keyboard and mouse)

Video Specifications

• Maximum Resolution: Up to 2048 x 1536 pixels
• Supported Video Formats: VGA

Features

• Switching Method:
  • Push-button switch for easy toggling between connected systems
  • Keyboard hotkey support for switching
• Compatibility:
  • Compatible with most USB keyboards and mice
  • Supports Windows, Linux, and Mac operating systems

Power Specifications

• Power Supply: Powered through USB connection from the connected computers, no external power adapter needed

Environmental Specifications

• Operating Temperature: 0 to 50°C
• Storage Temperature: -20 to 60°C
• Humidity: 0% to 80% (non-condensing)

Physical Specifications

• Dimensions: 152 mm x 100 mm x 30 mm
• Weight: Approximately 0.5 kg

Certifications

• Certifications: CE, FCC

Additional Features

• Compact Design: Space-saving design suitable for desktop use
• LED Indicators: Status indicators for power and active ports
