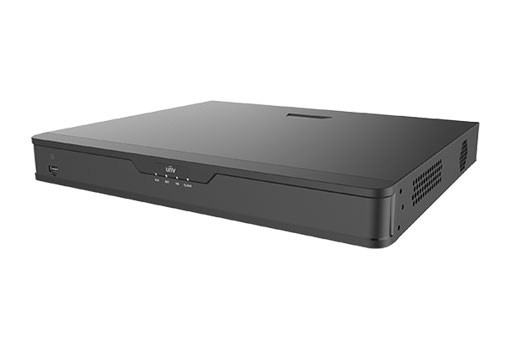

Uniview NVR302-E2 9/16/32 Input

Price:

Rs.49,700.00

SKU:

VNVR302-E2 Series

Weight:

0.00 LBS

Shipping:

Free Shipping

MOre information

Support Ultra H.265/H.265/H.264 video formats

9/16/32-channel input

Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution

HDMI and VGA independent outputs provided

Up to 12 Megapixels resolution recording

2 SATA HDDs, Up to 8TB for each HDD

Various fisheye dewarping modes for live view and playback for both web interface and GUI

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Specifications

Model	NVR302-09E2		NVR302-16E2	NVR302-32E2
Video/Audio Input
IP Video Input	9-ch		16-ch	32-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	180Mbps		320Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	1/4/6/8/9	1/4/6/8/9/16		1/4/6/8/9/16/25/36
Corridor Mode Screen	3/4/5/7/9	3/4/5/7/9/10/12/16		3/4/5/7/9/10/12/16/32
