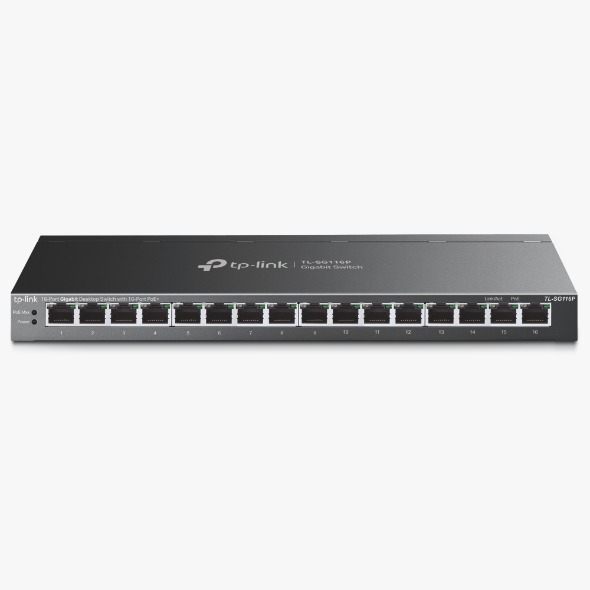

TP-Link TL-SG116P | 16 Port Gigabit PoE Switch

Image 1
  • Image 1
  • Image 2
Price:
Rs.34,500.00
SKU:
N/A
Brand:
Tp Link
Weight:
0.00 LBS
Availability:
Yes
Shipping:
Calculated at checkout
Quantity:

Product Description

Discover the TP-Link Wi-Fi Router Switches at itshop.pk—the best router switch in Pakistan. Experience fast, reliable connectivity and superior performance, perfect for homes and offices. Elevate your internet experience today!

TP-Link TL-SG116P | 16 Port Gigabit PoE Switch | 16 PoE+ Ports @120W | Plug & Play | Extend, Priority & Isolation Mode | PoE Auto Recovery | Fanless | QoS & IGMP Snooping

16-Port Gigabit Desktop Switch with 16-Port PoE+

  • 120 W PoE Budget : 16 × 802.3af/at-compliant PoE+ ports with a total power supply of 120 W.
  • Gigabit Ethernet Ports: 16 x gigabit PoE+ RJ45 ports provide high-speed connections.
  • Extended Distance Transmission: Up to 250 m data and power transmission range under Extend Mode.
  • Priority Mode: Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
  • Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance.
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
  • Plug and Play: Plug and play with no configuration required



HARDWARE FEATURES
Interface • 16× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate 23.8 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–16
• Power Supply: 120 W
Mac Address Table 8K, Auto-learning, Auto-aging
Switching Capacity 32 Gbps
Dimensions ( W x D x H ) 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
Max Power Consumption • 11.72 W (220 V / 50 Hz no PD connected) /
11.56 W (110 V / 60 Hz no PD connected)
• 142.51 W (220 V / 50 Hz with 120 W* PD connected) /
144.28 W (110 V / 60 Hz with 120 W* PD connected)
Max Heat Dissipation • 39.85 BTU/h (220 V / 50 Hz no PD connected) /
39.31 BTU/h (110 V / 60 Hz no PD connected)
• 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /
490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–4)
• Isolation Mode Button (Ports 1–7 / 8-14)
• PoE Auto Recovery (Ports 1-16)
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method Store-And-Forward

OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG116P
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
