TP-Link TL-SG1218MPE | 16 Port Gigabit PoE Switch

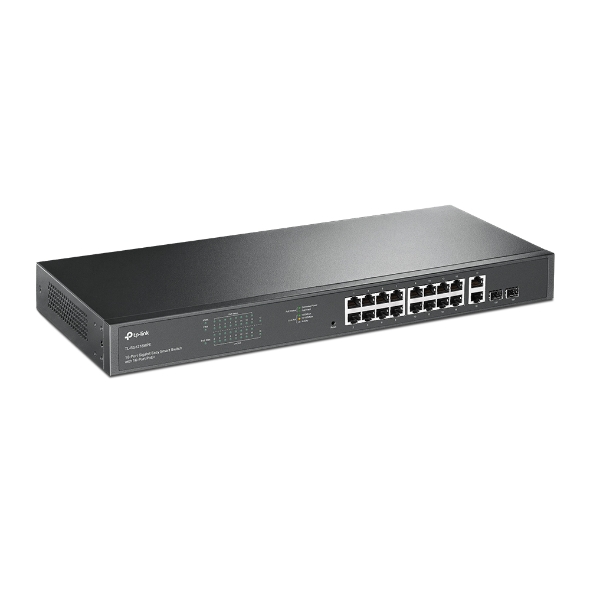

Image 1
  • Image 1
  • Image 2
  • Image 3
Price:
Rs.43,300.00
SKU:
N/A
Brand:
Tp Link
Weight:
0.00 LBS
Availability:
Yes
Shipping:
Calculated at checkout
Quantity:

Product Description

Discover the TP-Link Wi-Fi Router Switches at itshop.pk—the best router switch in Pakistan. Experience fast, reliable connectivity and superior performance, perfect for homes and offices. Elevate your internet experience today!



TP-Link TL-SG1218MPE | 16 Port Gigabit PoE Switch | Easy Smart Managed | 16 PoE+ Ports @250W, 2 non-PoE ports, 2 combo SFP slots



Brand TP-Link
Number of Ports 18
Included Components Power cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
Color Black
Compatible Devices Desktop

18-Port Gigabit Easy Smart Switch with 16-Port PoE+

  • 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
  • PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.
  • Port Priority is able to guarantee the quality of sensitive application like video monitor.
  • PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
  • Intelligent power management protects the switch from overload.
  • QoS ensures smooth traffic for latency sensitive applications.
  • IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.



HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption • 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation • 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 10 KB

SOFTWARE FEATURES
Quality of Service • Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
L2 Features • IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery
VLAN • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
Management • Web-based GUI
• Easy Smart Configuration Utility
Transmission Method Store-And-Forward

OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
